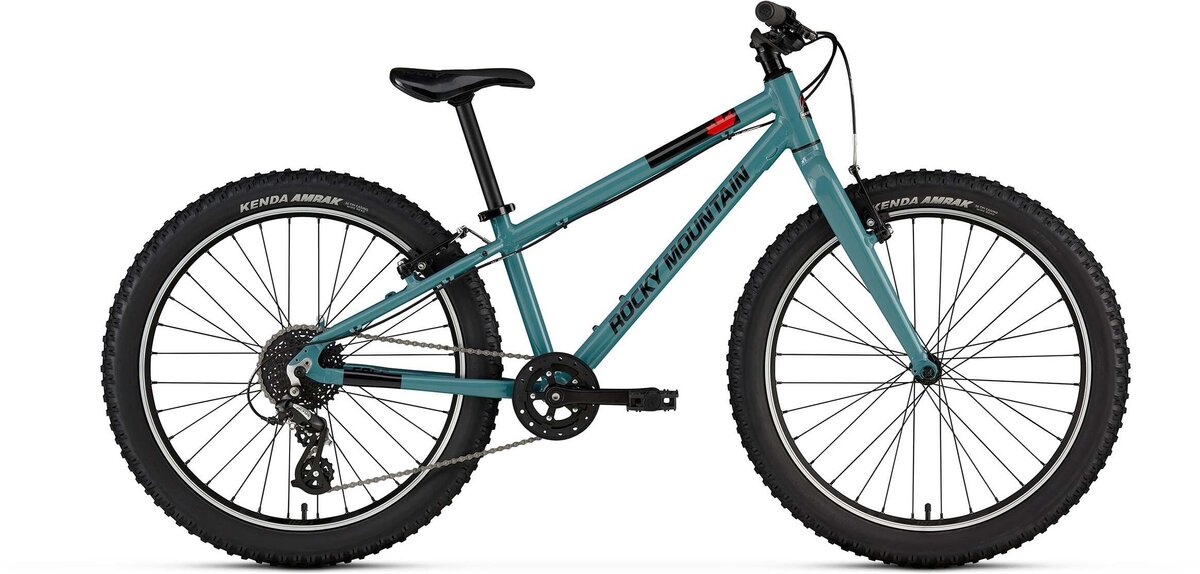

Rocky Mountain Edge Jr 24

Rocky Mountain Edge Jr 24
  • Color: Dreamer/Black Dog/Flaming Lips
  • Color: Blackberry Smoke/Big Cheese/Black Dog
Size: One Size
Please select options Unavailable
Order now and pick up in-store for free


Available in five wheel sizes and multiple frame sizes, there's an Edge model ready to get them set up right for the ride ahead. Every Edge model is best for kids of any age learning to ride and for mastering the basics.

- Inseam: 512 - 712mm / 20.5 - 28"

Geometry Chart:
Frame SizeKIDS
Top Tube Horizontal (mm) 515
Head Tube Angle (deg) 68°
Head Tube Length (mm) 115
Seat Tube Angle (deg) 72°
Seat Tube Length (mm) 310
Rear Centre (mm) 405
Bottom Bracket Drop (mm) 40
Reach (mm) 351
Stack (mm) 505
Standover Height (mm) 630
Wheelbase (mm) 967


Frame Rocky Mountain 6061 SL Alloy | Threaded BB | Zero Stack Headtube | 24" Kid's Geometry Rear Triangle
Fork Rocky Mountain Alloy JR
Rims Rocky Mountain JR21 | 32H
Hubs Front: Shimano TX500
Rear: Rocky Mountain QR
Spokes 2.0 Stainless
Tires F: Kenda Amrak 24 x 2.4 // R: Kenda Amrak 24 x 2.4
Bottom Bracket Sealed Cartridge Bearing
Crankset Crank Length: 152mm
Chainrings Cranks & Chainring Rocky Mountain Jr Alloy 3PC |28T
Shifters SunRace DLM403 Trigger
Rear Derailleur Shimano Altus
Cassette/Freewheel SunRace CSM55 11-34T
Chain KMC Z8.3
Brakes V Brake TX-121
Handlebars Rocky Mountain XC | 640mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Tape/Grips Rocky Mountain Slide On Kids
Stem Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 40mm
Headset Rocky Mountain | Loose Ball Bearings | 1-1/8" Crown Race
Seatpost Rocky Mountain Pivotal 27.2mm
Saddle Rocky Mountain Pivotal Kids

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blackberry Smoke/Big Cheese/Black Dog / One Size 770416430387 B0255OS4
Dreamer/Black Dog/Flaming Lips / One Size 770416430370 B0255OS3 210000037235
