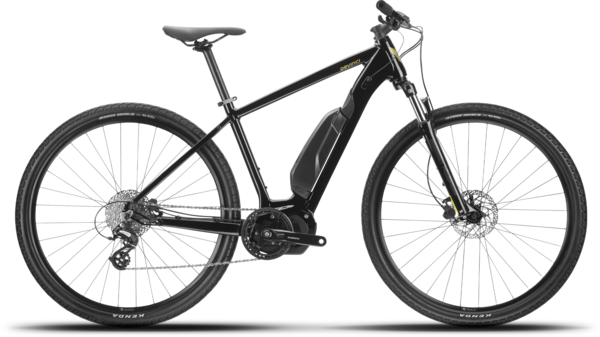

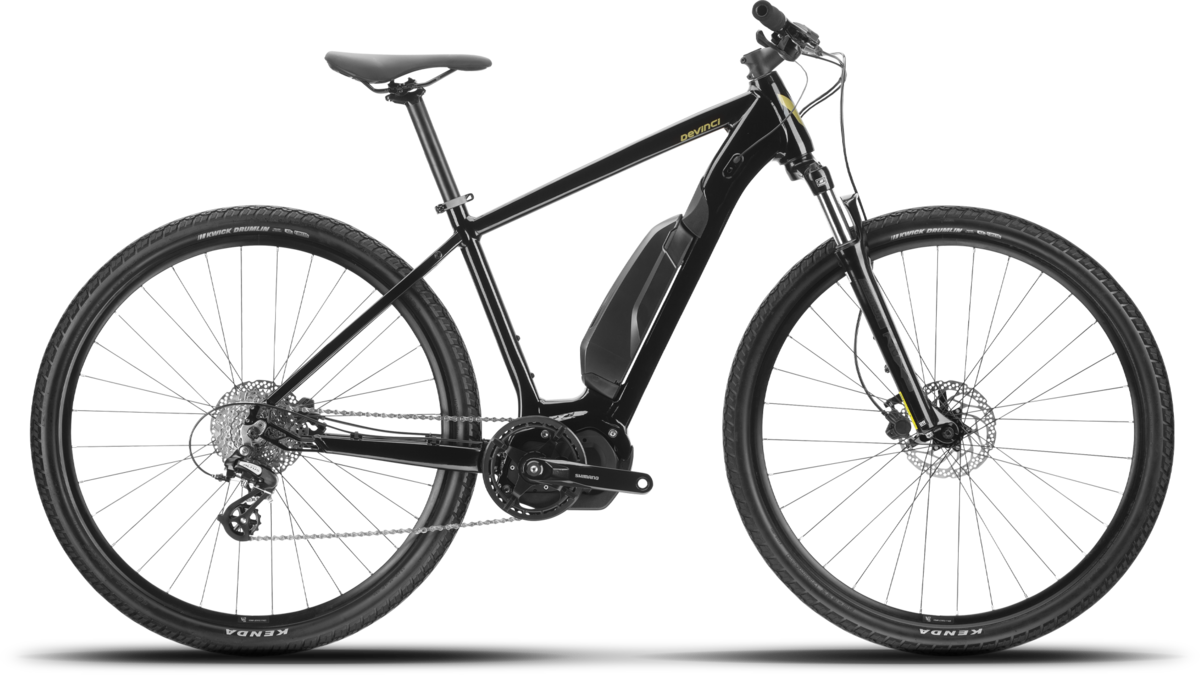

Devinci E-Milano E5000 8s
This item is currently not available.
Details
Trading a gas pedal past for a cleaner, powered-by-you future was the inspiration behind Devinci's eMilano. That and-of course-making everyday outings even more fun. The proven Shimano E5000 motor and 418Wh battery bring reliability and confidence-inspiring features to casual countryside excursions or mandatory mid-town romps. Rear rack, fender, and kickstand compatibility enhance versatility across all models. And final-touch details such as a premium finish bolstered by clean, internal cable routing bring it all home in a sleek, stylish package. Your perfect ride starts here.
| Size | Small | Medium | Large |
|---|---|---|---|
| A - Seat Tube (MM) | 400 | 450 | 500 |
| B - Seat Tube Angle (°) | 73 | 73 | 73 |
| C - Head Tube Angle (°) | 68 | 68 | 68 |
| D - Top Tube (MM) | 555 | 570 | 585 |
| E - Reach (MM) | 372 | 385 | 397 |
| F - Chain Stay (MM) | 453 | 453 | 453 |
| G - Wheelbase (MM) | 1081 | 1097 | 1113 |
| H - BB Height (MM) | 282 | 282 | 282 |
| I - Standover Height (MM) | 700 | 735 | 770 |
| J - Stack (MM) | 596 | 605 | 614 |
| K - Head Tube (MM) | 130 | 140 | 150 |
| Rider Height (CM) | 152-171 | 169-180 | 178-187 |
| SIZE | Small | Medium | Large |
|---|---|---|---|
| CM | 152-171 | 169-180 | 178-187 |
| INCHES | 5'0" - 5'7" | 5'7" - 5'11" | 5'11" - 6'2" |
Specs
| Frame | Aluminum Optimum S03 |
|---|---|
| Fork | Suntour NVX30 63mm w/Preload adjuster |
| Rims | V2 Comp | 17mm inner |
| Hubs | Formula CL-25 | Sealed | Centerlock |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires | Kenda Kwick Drumlin | 700x50c |
| Shifters | Shimano Acera M315 RapidFire Plus | 8s |
| Rear Derailleur | Shimano Acera M310 8s |
| Cassette/Freewheel | Shimano HG50-8s 11-34T |
| Chain | KMC X8 8s |
| Brakes | Tektro HD-M275 |
| Handlebars | V2 Comp | B:31.8mm | R:10mm | W:680mm |
| Tape/Grips | Soft Comfort | Single lock |
| Stem | V2 Pro | B:31.8mm | 17° |
| Headset | FSA Orbit 1.5B Zero Stack |
| Seatpost | V2 Comp | 30.9mm |
| Saddle | Devinci |
| Pedals | Wellgo M085 |
| Motor | Shimano STEPS E5000 250W | 40Nm |
| Battery | Shimano STEPS E8014 | 418Wh | Lithium-ion |
| Controller/Display | Shimano STEPS E5000 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Goldland / Small | 883385215036 | FE23075211 |
| Goldland / Medium | 883385215043 | FE23075311 |
| Goldland / Large | 883385215050 | FE23075411 |
