Details
Any trail. Every ride.
No excuse.

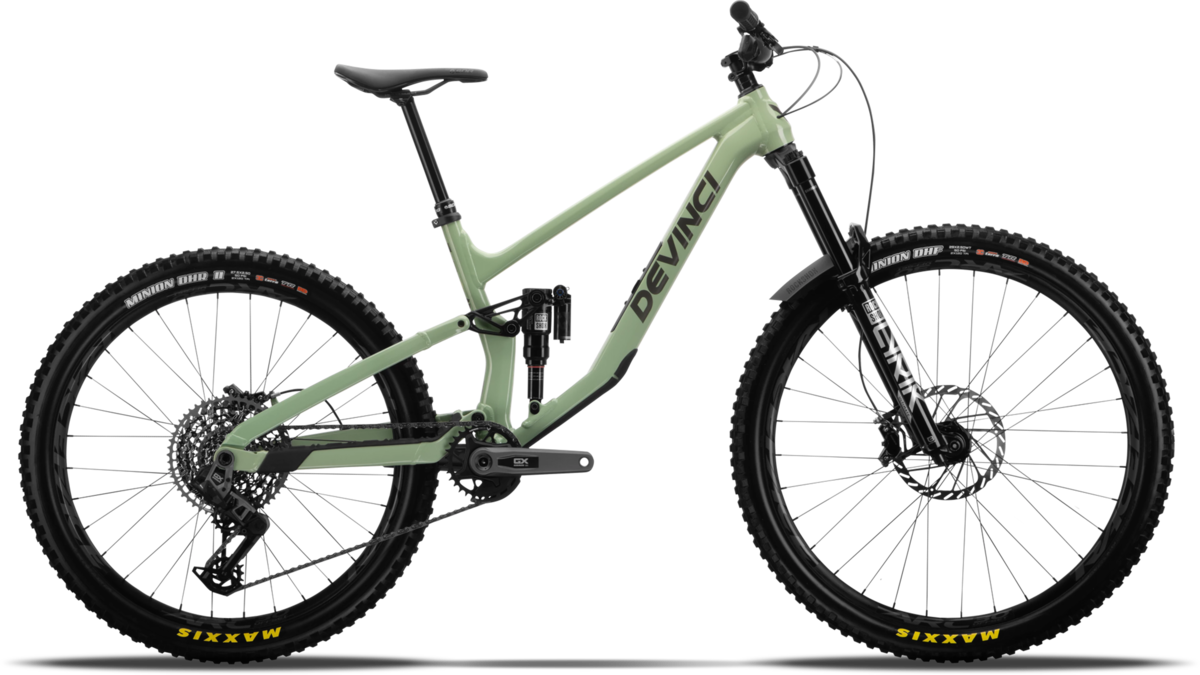

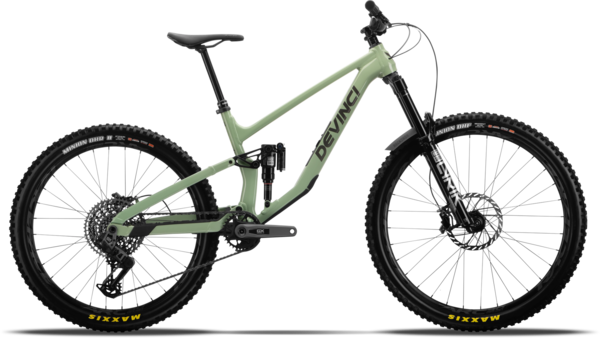

The everyday crusher of all trails. This Troy is our most advanced frame yet. But don’t let its Split Pivot design, streamlined profile and internal routing fool you. More than ever, Troy is built to shred. It has an updated geometry with size-specific chainstay lengths and comes stock with mixed wheels. It has more travel (150mm), so you’ll be looking for challenges instead of excuses. And its new ‘shed’ storage compartment in the downtube lets you pack all you need, without the need for a pack. Our quiver killer has a new set of instincts. Take one for a ride and see how far you can push it. You might never come back.
ROCK SHOX ULTIMATE SERIES
Offering maximum adjustability and featuring the latest innovations in damper technology, RockShox’s Ultimate series represents the pinnacle of the suspension manufacturer’s lineup. The Troy GX AXS is equipped with the Lyrik Ultimate fork, which includes the 3.1 Charger damper, ButterCups, and the DebonAir+ air spring. At the rear, RockShox’s Super Deluxe Ultimate with Linear XL Air Can takes care of rear shock duties, delivering incredible traction, tunability, and control.
MIXED WHEELS
The Troy comes stock with mixed wheels. Get all the snappy handling of 27.5" with the added traction, rollover and momentum of a 29" wheel up front. Still prefer full 29? The Geo-Saver mullet flip chip located at the lower mount of the shock lets you rock a 29’’ rear wheel without sacrificing the bike’s intended geometry.
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat Tube (MM) | 390 | 420 | 450 | 470 |
| Seat Angle (DEG) | 78.1 | 77.8 | 76.8 | 76.2 |
| Head Angle (DEG) | 64 | 64 | 64 | 64 |
| Top Tube (MM) | 568 | 594 | 631 | 656 |
| Reach (MM) | 440 | 460 | 480 | 500 |
| Chainstay (MM) | 435 | 435 | 440 | 445 |
| Wheel Base (MM) | 1206 | 1230 | 1260 | 1289 |
| BB Height (MM) | 343 | 343 | 343 | 343 |
| Standover Height (MM) | 708 | 708 | 708 | 708 |
| Stack (MM) | 612 | 622 | 631 | 640 |
| Head Tube (MM) | 95 | 105 | 115 | 125 |
| Rider Height (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Frame | Aluminum Optimum G04 150mm |
|---|---|
| Fork | Rockshox Lyrik Ultimate DB | 29 | 160 | 110x15 | 44OS |Black |
| Rear Shock | RockShox SuperDeluxe Ultimate 185x55T |
| Rims | RaceFace ARC30 29 | 30mm inner | TR |
| Hubs |
Front: RaceFace Vault | 6bolts | TA 15x110mm Rear: RaceFace Vault | Boost 148x12 | XD | 6bolts |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires |
Front: Maxxis Minion DHF | 29x2.5WT | 3C | DD | TR | MaxxTerra Rear: Maxxis Minion DHR II | 27.5x2.5WT | 3C | DD | TR | MaxxTerra |
| Bottom Bracket | SRAM DUB 73mm Threaded |
| Crankset | SRAM GX Eagle AXS | TType | 32T | 1Guard | Boost 148 | 170mm |
| Shifters | SRAM AXS POD | 12s |
| Rear Derailleur | SRAM GX Eagle AXS | T-Type | 12s |
| Cassette/Freewheel | SRAM XS1275 | T-TYPE | 12s | 10-52T |
| Chain | SRAM GX | T-Type | 12s |
| Brakes | SRAM Code Silver |
| Rotors | SRAM HS2 | 200mm |
| Handlebars | RaceFace ERA 35 | B:35mm | R:40mm | W:800mm |
| Tape/Grips | Devinci Performance | w/lock-on |
| Stem | RaceFace Turbine R35 | B:35mm | L:40mm | 0° |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | SDG Tellis 31.6mm |
| Saddle | SDG BELAIR 3.0 |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matcha / Small / 29-inch front / 27.5-inch rear | 883385241776 | FV24090241 | |
| Matcha / Medium / 29-inch front / 27.5-inch rear | 883385227381 | FV24090341 | 210000038629 |
| Matcha / Large / 29-inch front / 27.5-inch rear | 883385227374 | FV24090441 | 210000038630 |
| Matcha / X-Large / 29-inch front / 27.5-inch rear | 883385244388 | FV24090541 |
