Details
Getting you more on every ride

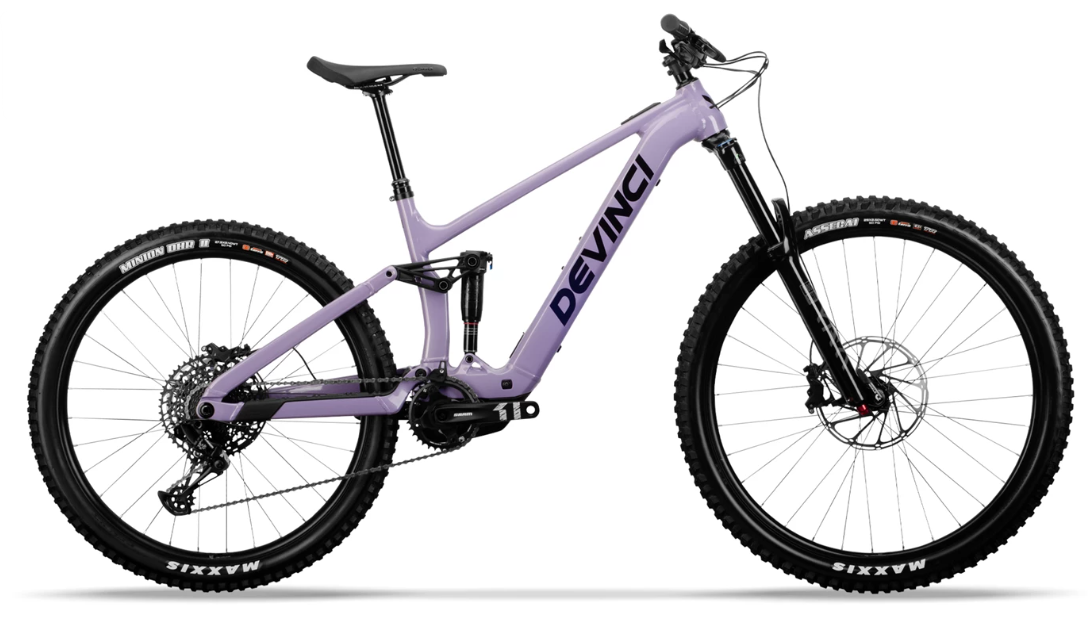

Climb in a flash and descend in style with this next generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for. You’ll sense the power delivered by a Bosch system that’s compatible with a range extender for longer days. More than anything, you’ll notice how subtle the difference is on the way down. An agile made-in-Canada chassis with mixed wheels and suspension kinematics brings the spirit of a Devinci trail bike to the world of power assist. The E-Troy Lite gives you more on every ride.
SPECS
Frame: Aluminum Optimum G04 150mm
Headset:FSA Orbit | 1.5 | Zero Stack
Seat Clamp:Alloy CNC | 34.9mm
Fork: RockShox Yari | RC | Db | 29 |160mm | 110x15 | 42Os | 2Token
Rear Shock: Rockshox Deluxe Select Debonair | 185x55 Trunnion
Handlebar: V2 Pro | B:35mm | R:30mm | W:800mm
Stem: V2 Pro | B:35mm | L:40mm | 0°
Saddle: SDG BELAIR Max eMTB
Seatpost: TranzX Dropper | 31.6mm | 1x Lever
Grips: Devinci Performance | w/lock-on
Brakes: SRAM DB8
Rotors: Front - SRAM Centerline | 220mm Rear - SRAM Centerline | 200mm
Rear Derailleur: SRAM NX Eagle | 12s
Rear Shifter: SRAM NX Eagle | 12s
Crankarm: SRAM X1000 Bosch
Chainring: Sram X-Sync Eagle 34T EMTB
Cassette: SRAM PG1210-12s 11-50T
Chain: SRAM SX Eagle | 12s
Rims: V2 Comp | 29mm inner | TR
Front Hub: Novatec D791SB-B15 | 6bolts | TA 15x110mm
Rear Hub: Formula | DHT-148 | 6 Bolts TA 12x148 BOOST
Spokes: Sapim Stainless 14G w/Nylok
Front tire: Maxxis Assegai | 29x2.5WT | 3C | Exo | TR | MaxxTerra
Rear tire: Maxxis Minion DHRII | 27.5x2.4WT | 3C | Exo+ | TR | MaxxTerra
Drive system: Computer - BOSCH System controller BRC3100 |
Drive Unit - Bosch Performance Line SX | Battery - Bosch CompactTube 400 | 36V | 400 Wh
Weight: 20.50kg / 45.19 lbs
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Small | |||
Medium | 883385228753 | FE24072311 | 210000037919 |
Large | 883385233207 | FE24072411 | 210000037921 |
X-Large |
