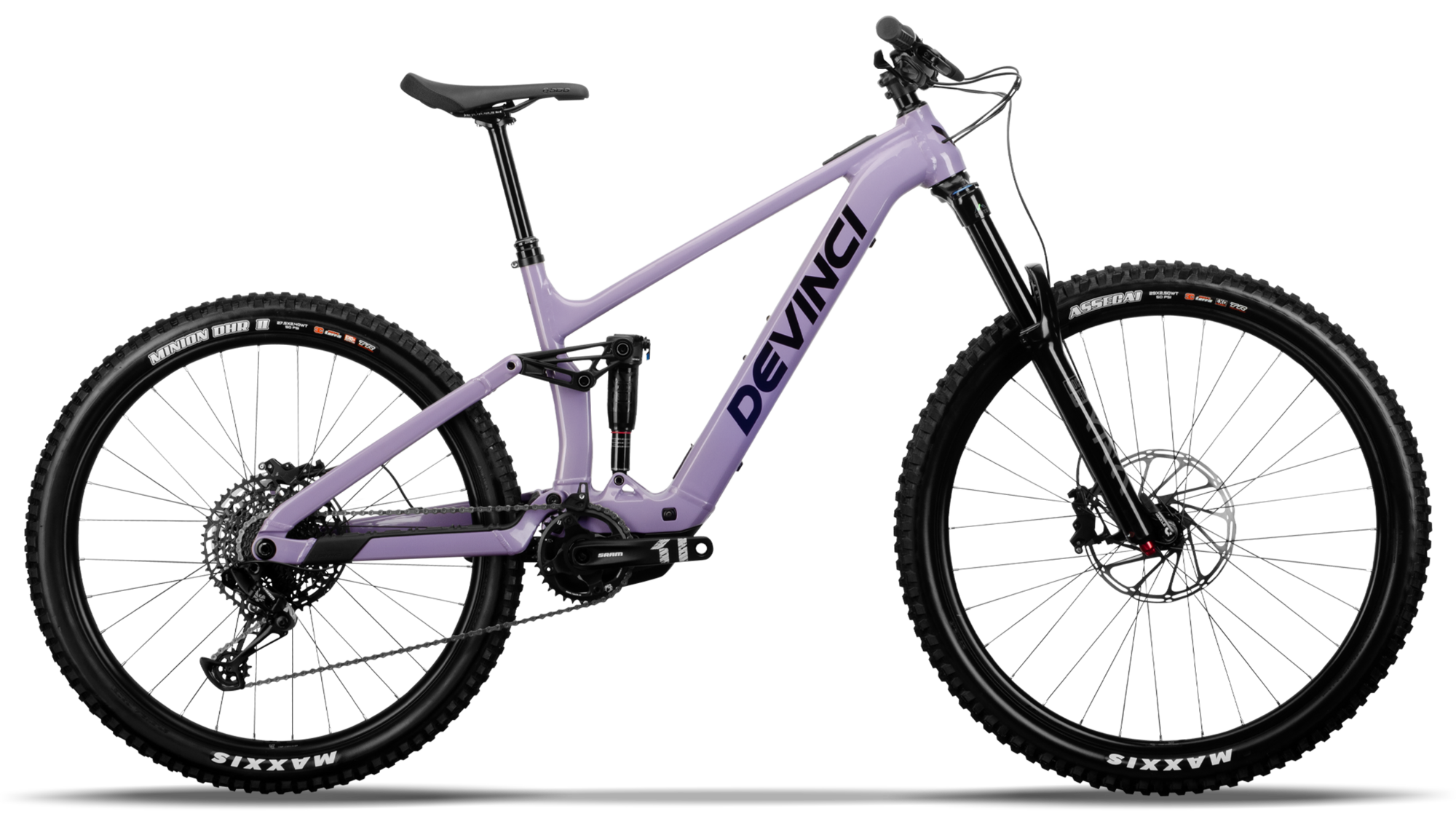

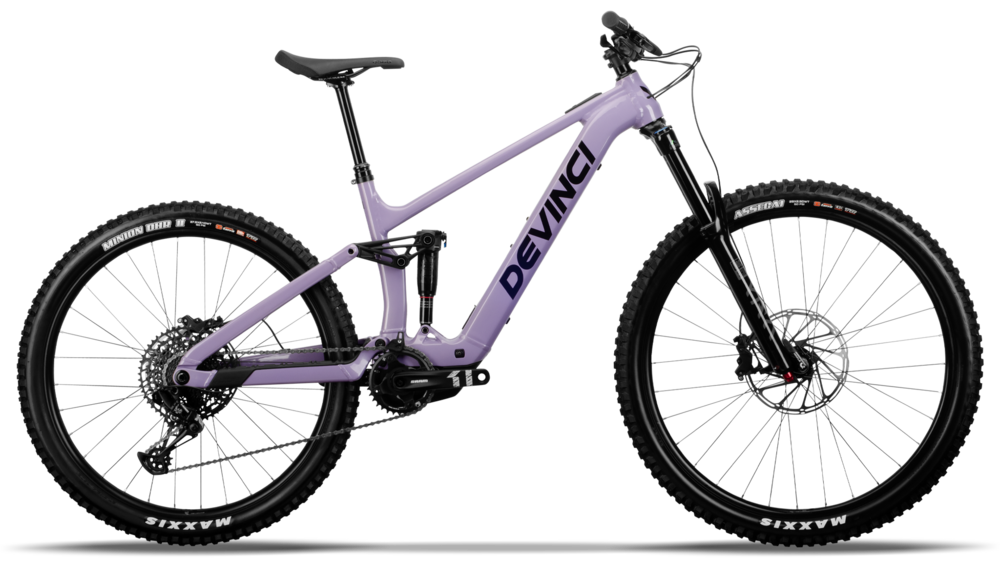

Devinci E-Troy Lite AL MX NX 12s
$6,999.00
Details
Getting you more on every ride
Climb in a flash and descend in style with this next generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for. You’ll sense the power delivered by a Bosch system that’s compatible with a range extender for longer days. More than anything, you’ll notice how subtle the difference is on the way down. An agile made-in-Canada chassis with mixed wheels and suspension kinematics brings the spirit of a Devinci trail bike to the world of power assist. The E-Troy Lite gives you more on every ride.
| S | M | L | XL | |
|---|---|---|---|---|
| A - ST (MM) | 400 | 420 | 460 | 495 |
| B - SA (DEG) | 77.9 | 77.8 | 77.6 | 77.5 |
| C - HA (DEG) | 63.6 | 63.6 | 63.6 | 63.6 |
| D - TT (MM) | 572 | 594 | 618 | 641 |
| E - REACH (MM) | 441 | 461 | 481 | 501 |
| F - CS (MM) | 438 | 438 | 438 | 438 |
| G - WB (MM) | 1216 | 1240 | 1264 | 1289 |
| H - BBH (MM) | 346 | 346 | 346 | 346 |
| I - SOH (MM) | 740 | 740 | 740 | 740 |
| J - STACK (MM) | 608 | 617 | 626 | 635 |
| K - HT (MM) | 95 | 105 | 115 | 125 |
| RIDER HEIGHT (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Battery | Bosch CompactTube 400 | 36V | 400 Wh |
|---|---|
| Fork | RockShox Yari | RC | Db | 29 |160mm | 110x15 | 42Os | 2Token |
| Hubs | Novatec D791SB-B15 | 6bolts | TA 15x110mm |
| Rims | V2 Comp | 29mm inner | TR |
| Stem | V2 Pro | B:35mm | L:40mm | 0° |
| Chain | SRAM SX Eagle | 12s |
| Frame | Aluminum Optimum G04 150mm |
| Rotors | SRAM Centerline | 200mm |
| Saddle | SDG BELAIR Max eMTB |
| Spokes | Sapim Stainless 14G w/Nylok |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | TranzX Dropper | 31.6mm | 1x Lever |
| Handlebars | V2 Pro | B:35mm | R:30mm | W:800mm |
| Rear Shock | Rockshox Deluxe Select Debonair | 185x55 Trunnion |
| Rear Derailleur | SRAM NX Eagle | 12s |
| Cassette/Freewheel | SRAM PG1210-12s 11-50T |
| Chainrings | Sram X-Sync Eagle 34T EMTB |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Digital Lavender / Medium / 29-inch front / 27.5-inch rear | 883385228753 | FE24072311 | 210000037919 |
| Digital Lavender / X-Large / 29-inch front / 27.5-inch rear | 883385239698 | FE24072511 | |
| Digital Lavender / Large / 29-inch front / 27.5-inch rear | 883385233207 | FE24072411 | 210000037921 |
| Digital Lavender / Small / 29-inch front / 27.5-inch rear | 883385233214 | FE24072211 |
